Making A StickBait Part 1


  • Please log in to reply
5 replies to this topic

#1 ExtremeFisherman

ExtremeFisherman
  • Moderators
  • 174 posts

Posted 12 June 2011 - 03:04 PM

This will be a four part "how to" on making a stickbait from wood .
Part one -Wood selection and Blank making
Part two -Shaping
Part three- Drilling , weighting and testing
Part four Finishing technics

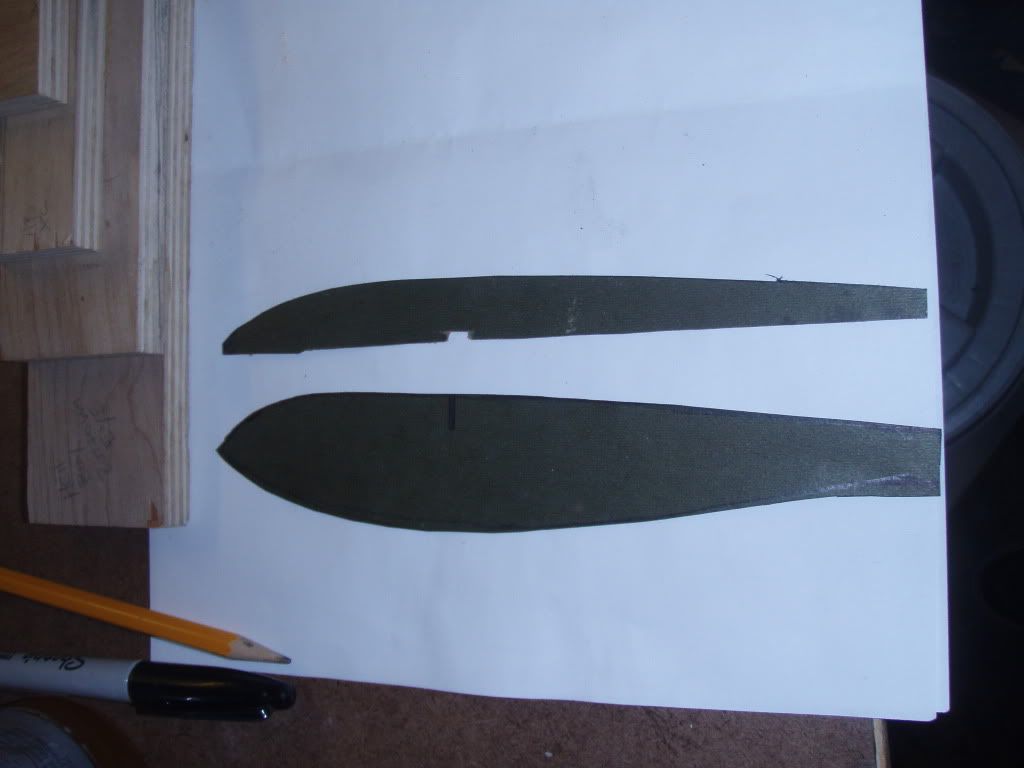

First step is to make a template . You will need to make two ,a top profile and a side profile .You can use cardboard or wood to make your templates .

Posted Image


Next you need to select a piece of wood , for a floater I like a light buoyant wood like Atlantic white cedar and for a sinker Rock Maple and birch are two good choices .For this build Its going to be a floater made from AWC .

Posted Image

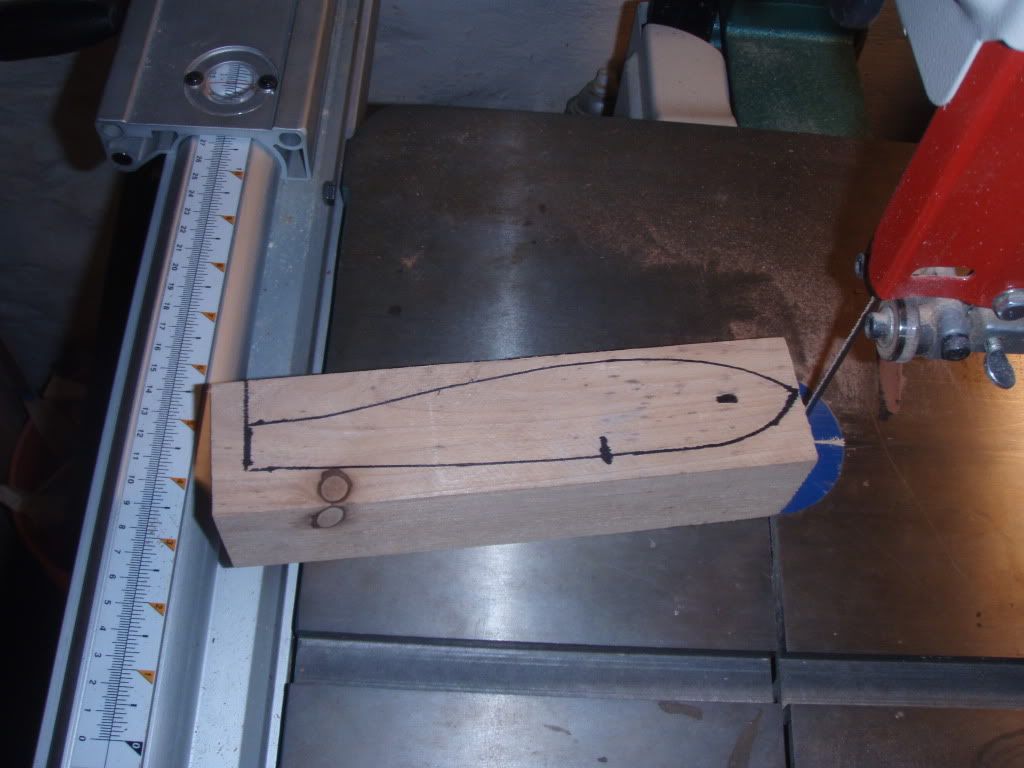

Next you need to trace your side profile from your template onto your choice of wood .


Posted Image

Now you will cut out your side profile using a bandsaw

Posted Image

After you cut it out you want to tape it back together and trace your top profile from your template to your blank


Posted Image
Posted Image

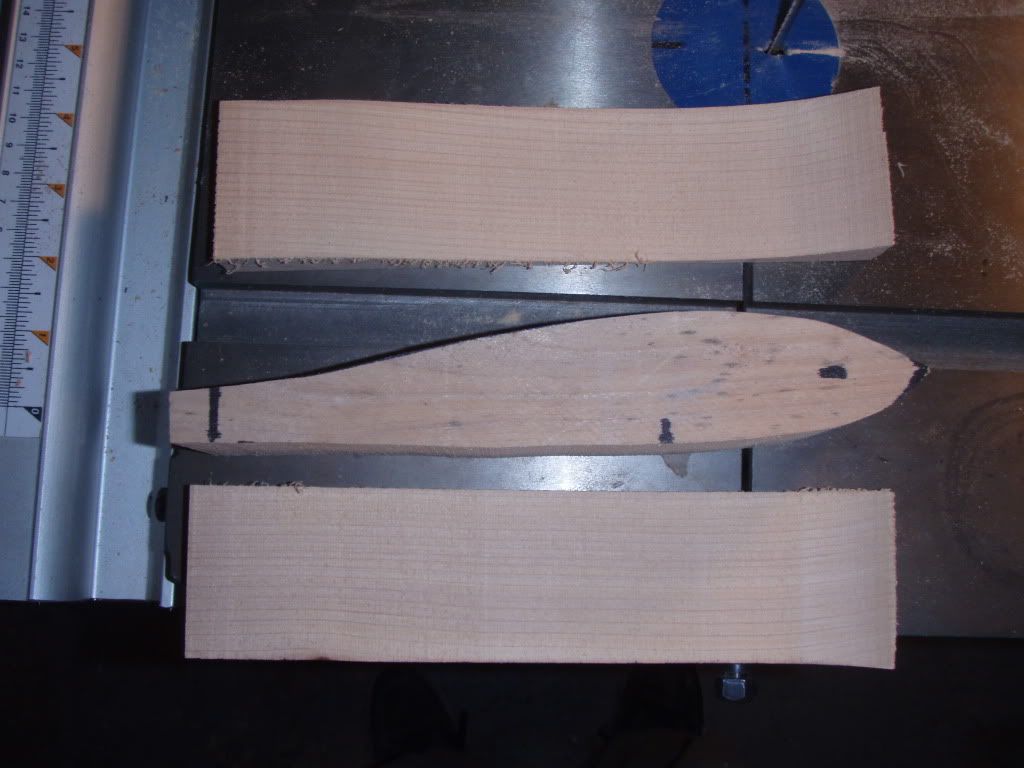

Now back to the bandsaw to cut out your top profile

Posted Image

This is the end result .

Posted Image

With this method you can keep everything even and symmetrical .

Part two will show you how to get to this stage in the build
Posted Image
Epoxy Huffing

#2 AdhekUSA

AdhekUSA
  • Members
  • 3 posts

Posted 12 June 2011 - 07:43 PM

Can not wait to see the rest:)

#3 pillon

pillon
  • Members
  • 8 posts

Posted 15 June 2011 - 05:29 AM

wow..nice post..
waiting 4 the balancing part..

#4 ExtremeFisherman

ExtremeFisherman
  • Moderators
  • 174 posts

Posted 27 December 2011 - 12:32 PM

Parts Two and three almost complete . Been rebuilding my shop after a flood did some damage . Sorry for the long delay ....
Epoxy Huffing

#5 fishnh

fishnh
  • Members
  • 148 posts

Posted 27 December 2011 - 07:01 PM

worth the wait for sure :)

#6 Jakegalvin

Jakegalvin
  • Members
  • 1 posts

Posted 05 April 2015 - 09:31 PM

Where can I find parts 2, 3 and 4?
